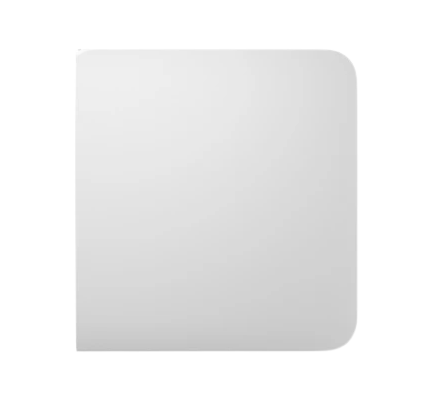

Ajax SideButton (1-gang/2-way) [55] white

Ajax SideButton (1-gang/2-way) White - Side button for single-key or pass-through switch Radio frequency ranges 866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz Maximum Effective Radiated Power (ERP) up to 20 MW Radio signal modulation GFSK Radio communication range up to 1100 m Scenarios alarm response response to changing the security mode scheduled activation response to pressing another LightSwitch The power of the switched device is from 5 to 600 watts Illumination at night Optional, you can disable it in the device settings in the Ajax application. Protection against forgery device authentication Protection against forgery device authentication Connection loss detection from 36 seconds Supply voltage 230 V, 50 Hz Average consumption up to 200 MW Maximum switching power 600 Watts Current protection greater than 2.6 A Temperature protection above +60°C Operating temperature range from -10°C to +40°C The permissible humidity is up to 75% without condensation Protection class IP20 European type circuit breaker form factor (55) Relay LightCore (1-gang) — 45.95 g LightCore (2-gang) — 53.9 g LightCore (2-way) — 48.34 g Frames Frame (2 seats) — 16.13 g Frame (3 seats) — 22.12 g Frame (4 seats) — 28.12 g Buttons SoloButton (1-gang / 2-way) — 44.5 g SoloButton (2-gang) — 45.75 g CenterButton (1-gang / 2-way) — 30.97 g CenterButton (2-gang) — 31.97 g SideButton (1-gang / 2-way) — 31.56 g SideButton (2-gang) — 32.73 g Relay LightCore (1-gang) — 76.3 × 72.3 × 29.2 mm LightCore (2-gang) — 76.3 × 72.3 × 29.2 mm LightCore (2-way) — 76.3 × 72.3 × 29.2 mm Frames Frame (2 seats) — 82.75 × 153.48 × 6.3 mm Frame (3 seats) — 82.75 × 224.48 × 6.3 mm Frame (4 seats) — 82.75 × 295.48 × 6.3 mm Buttons SoloButton (1-gang / 2-way) — 82.75 × 82.75 × 10.26 mm SoloButton (2-gang) — 82.75 × 82.75 × 10.26 mm CenterButton (1-gang / 2-way) — 82 × 70.53 × 10.26 mm CenterButton (2-gang) — 82 × 70.53 × 10.26 mm SideButton (1-gang / 2-way) — 82 × 76.19 × 10.26 mm SideButton (2-gang) — 82 × 76.19 × 10.26 mm
