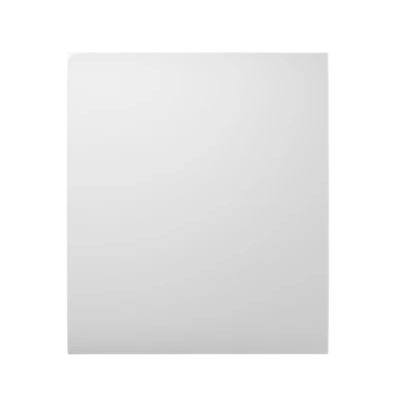

Ajax CenterButton (1-gang/2-way) White - Center button for single-key or pass-through switch
Radio frequency ranges
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Maximum Effective Radiated Power (ERP)
up to 20 MW
Radio signal modulation
GFSK
Radio communication range
up to 1100 m
Encrypted radio communication
All data that is stored and transmitted is protected by floating-key block encryption.
Scenarios
alarm
response response to changing the security mode
scheduled activation
response to pressing another LightSwitch
The power of the switched device
is from 5 to 600 watts
Illumination at night
Optional, you can disable it in the device settings in the Ajax application.
Fraud protection
device authentication
Connection loss detection
from 36 seconds
Supply voltage
230 V, 50 Hz
Average consumption
up to 200 MW
Maximum switching power
600 Watts
Current protection
greater than 2.6 A
Temperature protection
above +60°C
Operating temperature range
from -10°C to +40°C
The permissible humidity
is up to 75% without condensation
Protection class
IP20
European type circuit breaker form factor (55)
Relay
LightCore (1-gang) — 76.3 × 72.3 × 29.2 mm
LightCore (2-gang) — 76.3 × 72.3 × 29.2 mm
LightCore (2-way) — 76.3 × 72.3 × 29.2 mm
Frames
Frame (2 seats) — 82.75 × 153.48 × 6.3 mm
Frame (3 seats) — 82.75 × 224.48 × 6.3 mm
Frame (4 seats) — 82.75 × 295.48 × 6.3 mm
Buttons
SoloButton (1-gang / 2-way) — 82.75 × 82.75 × 10.26 mm
SoloButton (2-gang) — 82.75 × 82.75 × 10.26 mm
CenterButton (1-gang / 2-way) — 82 × 70.53 × 10.26 mm
CenterButton (2-gang) — 82 × 70.53 × 10.26 mm
SideButton (1-gang / 2-way) — 82 × 76.19 × 10.26 mm
SideButton (2-gang) — 82 × 76.19 × 10.26 mm
